JACKS AND PLUGS
HEAVY DUTY 1/4" COMMERCIAL PHONE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
HEAVY DUTY 1/4" COMMERCIAL PHONE PLUGS (continued)
SPECIFICATIONS
Contact Resistance (typical *D.O.M.J.): < 0.020 ohms.
Dielectric Withstand Voltage: 500 VAC (minimum).
Insulation Resistance @ 500 VDC: 2,000 megohms
(minimum).
Insulation Resistance (after MIL-STD-202 Salt Spray):
1,000 megohms (minimum).
Working Voltage: 250 VAC, 140 VDC.
Current Carry @ Working Voltage For 188 Plug
(typical *D.O.M.J.): 15.0 AMPS.
Current Carry @ Working Voltage For 299 Plug
(typical *D.O.M.J.): 6.0 AMPS.
Insert/Withdrawal Force: *D.O.M.J..
Soldering Requirement: ANSI/J-STD-001.
Temperature Range: -40° to + 85° Centigrade
U.L. Component Recognition File No.: E118169.
Life: *D.O.M.J.
Maximum Cable Size For 188 Plug:

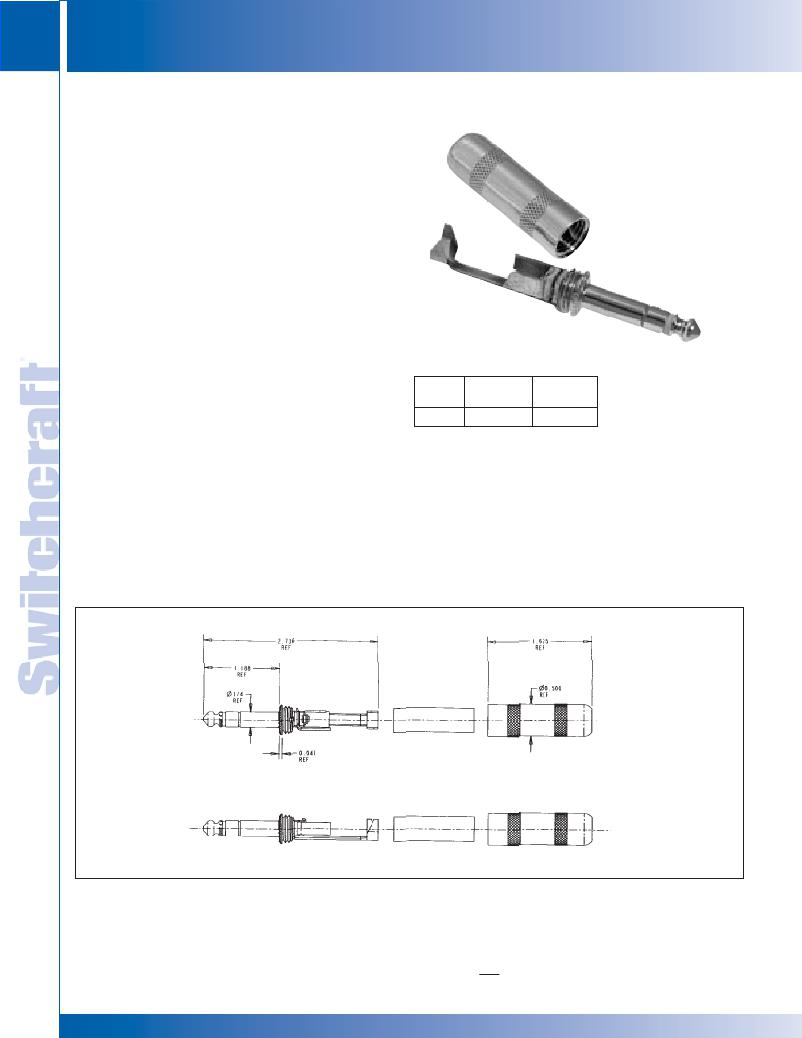

SERIES 299 PLUG
12 AWG stranded, up to .450" diameter.
Maximum Cable Size For 299 Plug: .290" diameter.
MATERIALS
Part
Number
299
Maximum
Cable Size
.290" Diameter
Mating
Jack
Z15J
Tip: Nickel-plated copper alloy.
Sleeve: Nickel-plated copper alloy.
Handle: Nickel-plated copper alloy.
Tip Terminal: Copper alloy, electro tin-plated.
Cable Clamp: Copper alloy, electro tin-plated.
Insulators For 188 Plug: Thermojet plastic,
thermoplastic, thermoplastic film, P.P.O.
Insulators For 299 Plug: Thermoplastic,
thermoplastic film, glass epoxy.
*D.O.M.J. – Dependent On Mating Jack
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
